Turbo Charger STAGE 2 Hybrid VXR Turbo Z20LEH K04 FOR Z20LET/LEL/LER/LEH

5-7 Days Turbo Charger STAGE 2 Hybrid VXR Turbo Z20LEH K04 FOR Z20LET/LEL/LER/LEH
Turbo Charger STAGE 2 Hybrid VXR Turbo Z20LEH K04 FOR Z20LET/LEL/LER/LEH

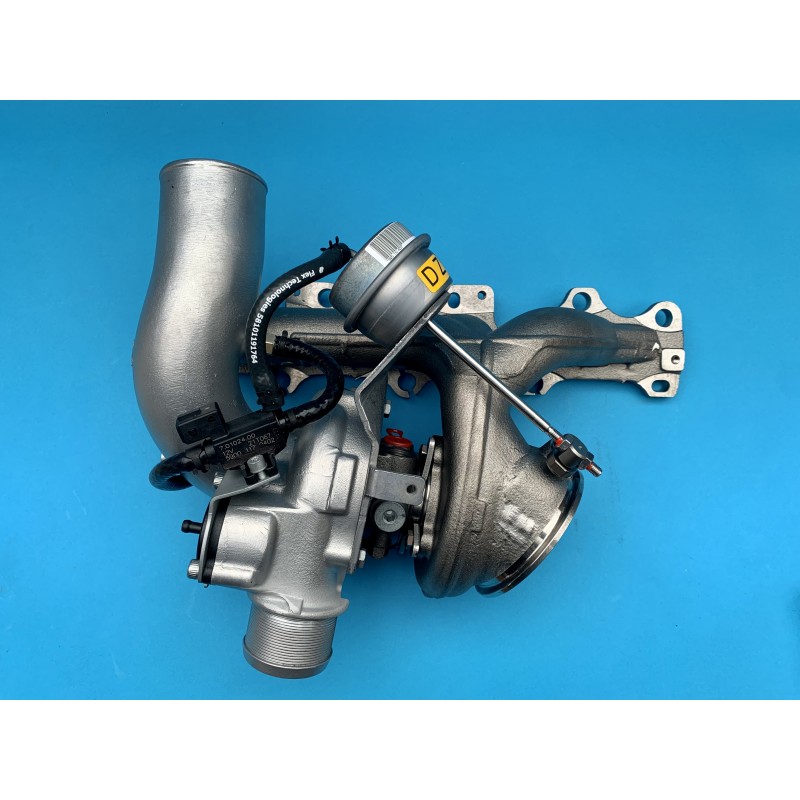

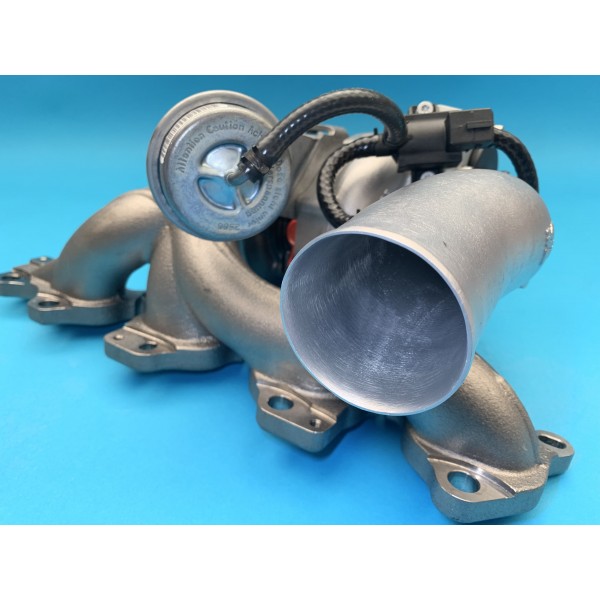

1 x Complete Turbocharger Assembly which includes Exhaust Manifold, Turbocharger (Core and Compressor Cover with billet wheel  with uprated bearing pack), boost control solenoid and vacuum pipes, factory actuator and factory recirculation valve.

ALL TURBO'S ARE SOLD ON AN EXCHANGE BASIS ONLY, THIS MEANS WE WILL REQUIRE YOUR OLD UNIT.

A SURCHARGE OF £150.00 WILL BE PAYABLE TO GET THE TURBO DISPATCHED. ONCE THE OLD UNIT IS RECEIVED THE SURCHARGE WILL BE REFUNDED TO YOU.

Stage 2 KRS Hybrid Turbocharger for Z20LEX 2.0 Turbo engines -

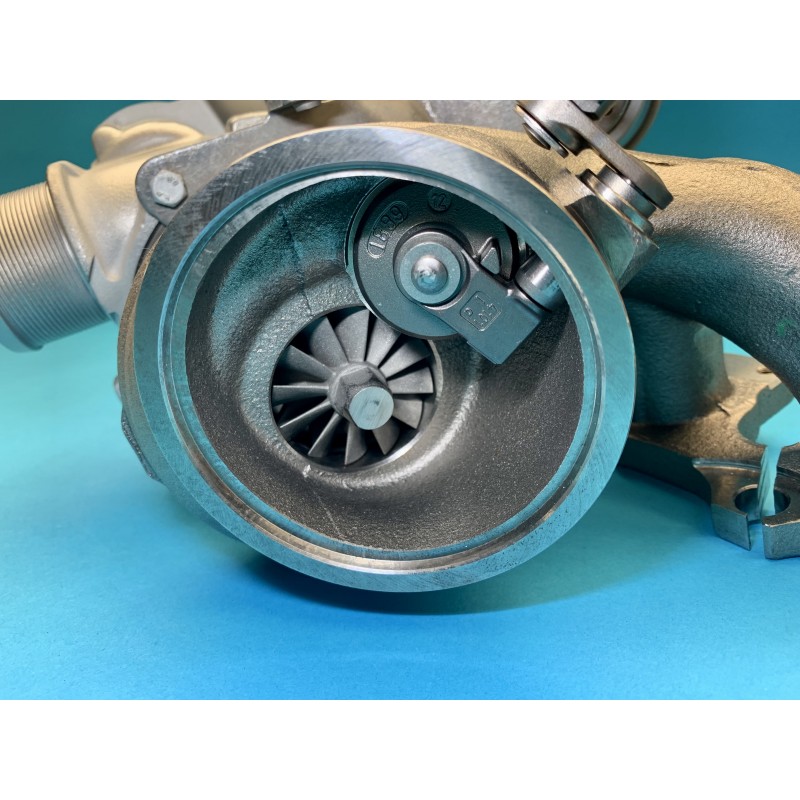

Reworked from a brand new K04 unit featuring a Lightweight High Trim Billet Compressor Wheel, uprated 360 degree thrust bearing, uprated  360 degree thrust bearing kit for increased reliability allowing for higher boost levels, staggered oil seal ported compressor cover and turbine wheels balanced to a higher specification than standard.


  • KRS Stage 2 Lightweight Compressor Wheel

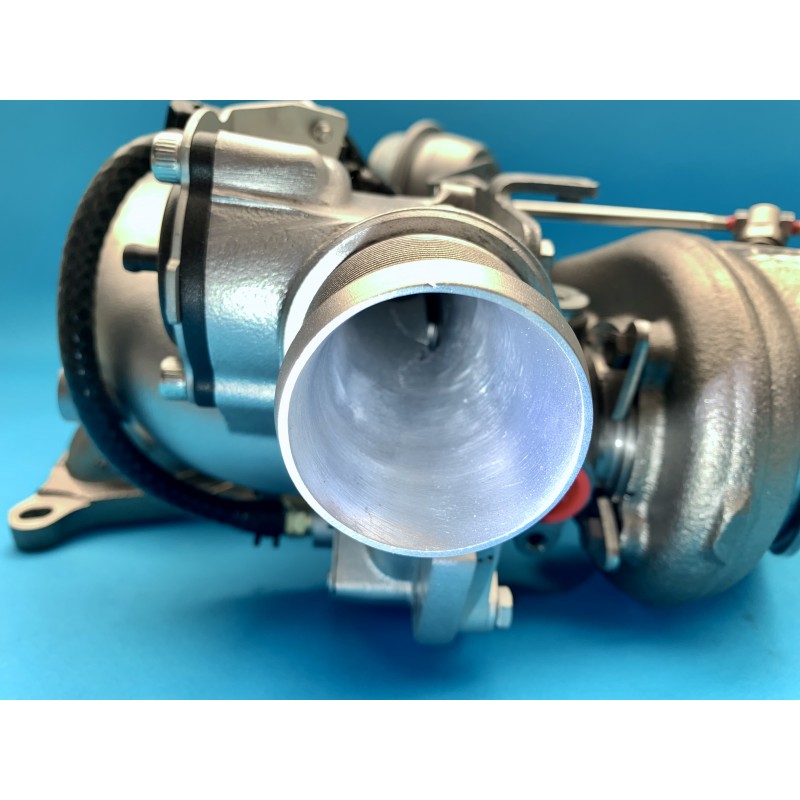

  • Reprofiled Compressor Cover
  • Ported Inlet Snorkel
  • Smoothed / Lightly Ported Compressor Cover Outlet Port
  • High Pressure 360 Thrust bearing
  • Staggered Oil Seal
  • Oversized Thrust Collar
  • Balanced to a Minimum 2x OE Specification


Comes complete with VXR actuator, recirculation valve, boost control solenoid & pipes


Brand New Unit - No Exchange Required



Gains seen on Astra H VXR Z20LEH  with our high flow inlet manifold and other supporting mods of up to 350bhp on cars also fitted with suitable intercooler and 76mm full exhaust system etc.



Please Note: Due to the varied nature of fitment and application and lack of control regarding fitting environment we are unable to warranty turbo chargers supplied by mail order.

For units supplied and fitted by us on our premises we will offer our own 12 month/12,000 mile warranty.

Note: Will require ecu mapping to ensure correct running and no damage to the engine and turbo. These turbochargers are built to order.
