End Case Revised and 3 Larger Bearings for M32 M20 Gearbox

Sorry Out Of Stock End Case Revised and 3 Larger Bearings for M32 M20 Gearbox
End Case Revised and 3 Larger Bearings for M32 M20 Gearbox

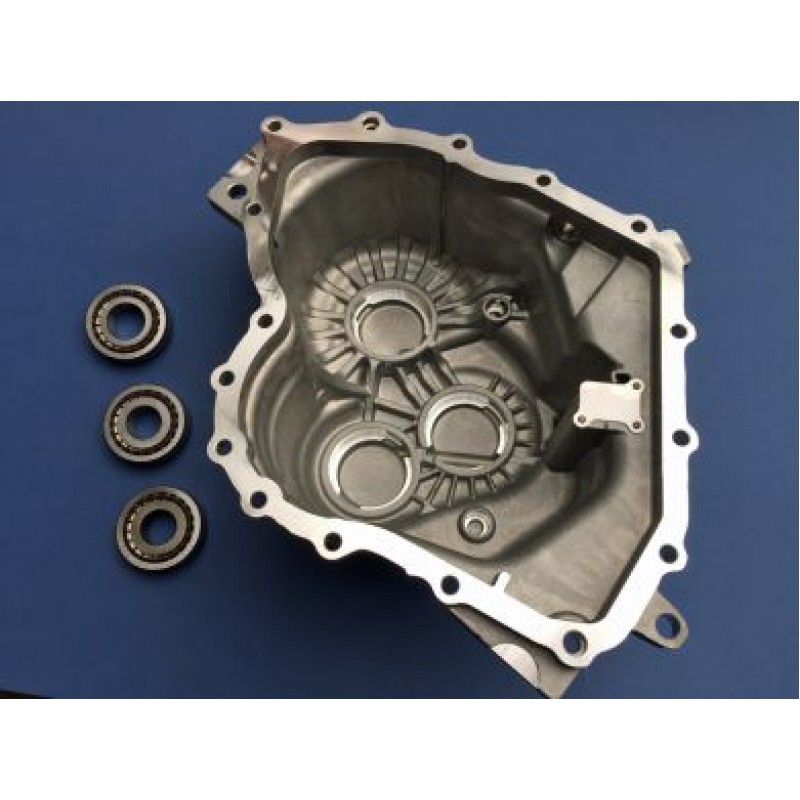

Included in this kit are the following components:

1 x Larger Type 28mm Rear End Case Bearing (62mm O/D)
2 x Larger Type 25mm Rear End Case Bearings (62mm O/D)
1 x Revised M32 Later Type End Case

Revised Later End Case and 3 Larger Bearings for M32 / M20 Gearbox.

This is a later type Genuine Vauxhall/Opel redesigned end case for the M32 / M20 gearbox and three end case bearings, designed to replace the earlier type of end case with smaller bearings.

This later end case features larger bearings and additional oil galleries to offer better lubrication to the end case bearings.

This can be used as an upgrade to existing M32 / M20 Gearboxes as used in amongst others; Astra H, Zafira B, Corsa D, Meriva A, Punto, Alfa Romeo that do not have this case fitted already.

Bearings manufactured by SNR.

Often referred to as the 'Big Bearing Upgrade'.

INSTALLATION NOTE:
Clearances should be checked during rebuild and shimmed accordingly.
Shims available separately as required and can be found >>>> HERE <<<<.
When fitting the later end case to a gearbox originally fitted with an early end case the retaining circlips are no longer used.

Enquiry Form.

Write a review

Please login or register to review
  • Views: 34134
  • Product Code: M32RCBN
  • Availability: Sorry Out Of Stock
  • £360.00
  • Ex Tax: £300.00
