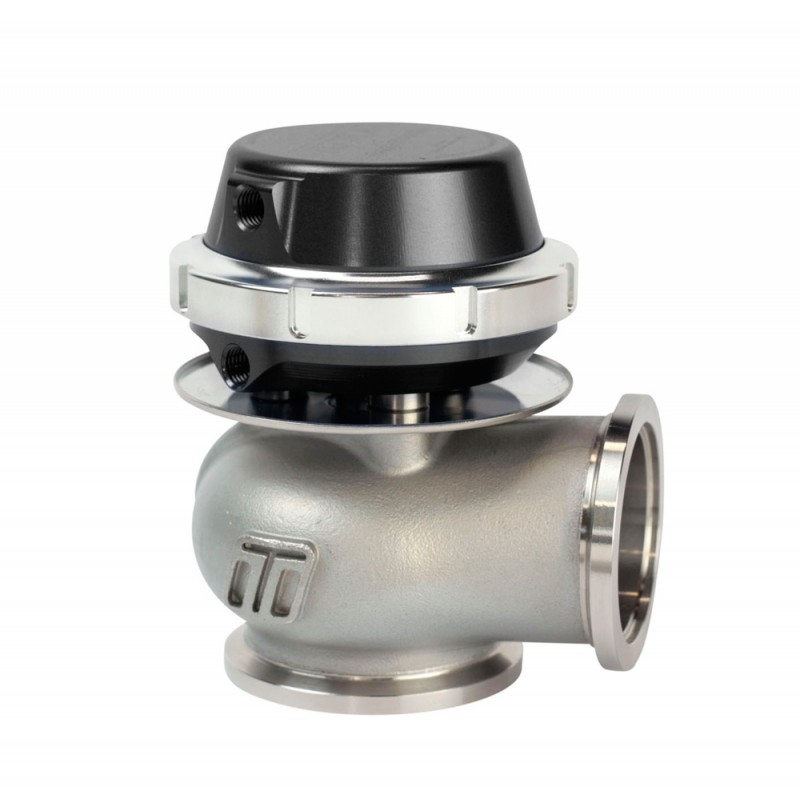

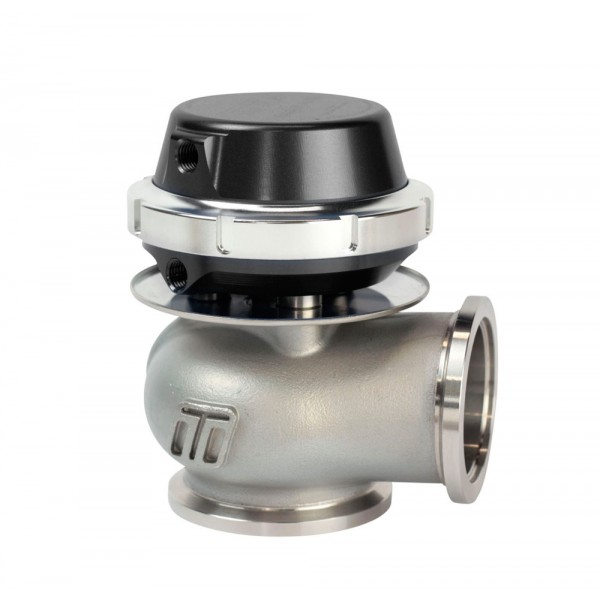

Turbosmart WG40 Compgate 40 14PSI
Supplied With:
Inlet and Outlet Stainless Weld Flanges, Inlet
and Outlet V-Band Clamps, 1/16 NPT Hose Barbs (5mm), 1/16 NPT Port
Blanking Plugs, Locking Collar Tool, Valve Seat, Brown/Purple 7psi
Middle Spring and Brown/Pink 7psi Outer Spring (installed).
Turbosmart's Comp-Gate WG40 (40mm) external wastegate was designed to fit
into tight engine bays while still offering superior flow and heat
handling capabilities.
The revolutionary actuator housing is 25% smaller
than previous designs and allows for easy spring changes (from 3psi to
26psi available) with our locking cap design and gives the ability to
index the cap orientation in 12 different positions.
Features Solid 1
Piece Coated Stainless Steel Valve and Silicon Nomex Diaphragm for true
reliability and performance.
Suitable for all turbocharged vehicles with an external wastegate turbo
system. Street and racing applications. Flanges suit 1 3/4” outside
diameter tubing.

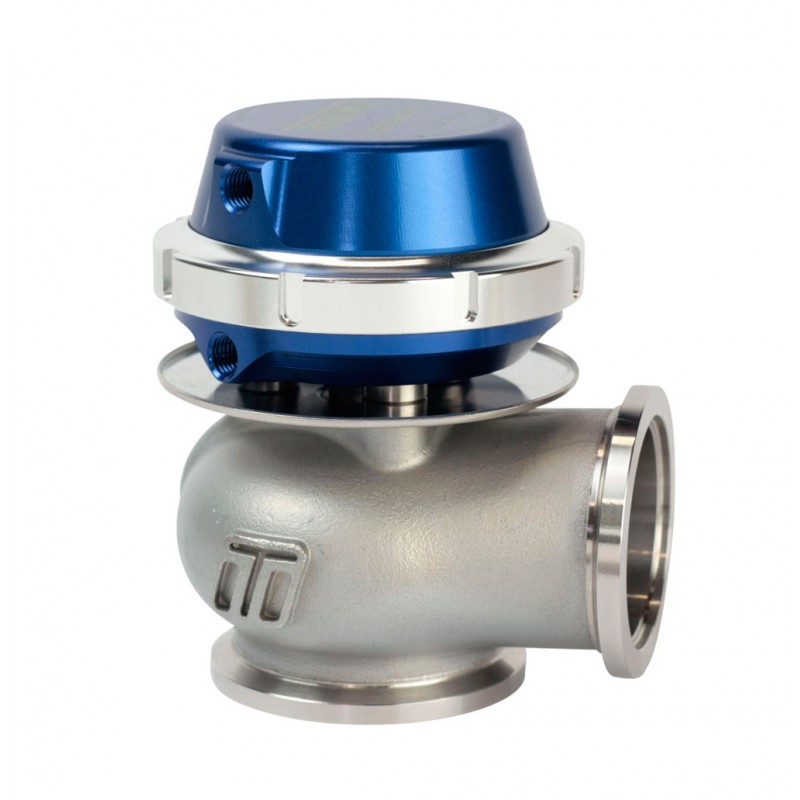

Available in Black or Blue Finish.
| Additional Details | |
| Pressure | 14PSI Spring |
